Plugin

All KUSoftas CMS plugins are open source software and released under MIT license.

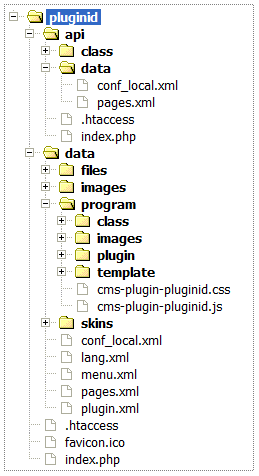

CMS plugin is software package plugged into CMS. Plugins by default are located in /cms/srv/plugins folder. Plugin software package structure:

• pluginid. Each plugin has root folder identified by pluginid. Plugin is subsite relative to main site. As it is subsite it has site regular structure:
  • api subsite (service for plugin jQuery Ajax requests) folder containing:
    • class - folder contains class files with API subsite HTTP Request route functions
    • data - api subsite configuration data folder
      • conf_local.xml - subsite configuration xml file
      • pages.xml - subsite pages for HTTP Request service
    • other api subsite inportant files
      • .htaccess - handle HTTP requests
      • index.php - call CMS software
  • data folder containing:
    • files - folder contains plugin management site files
    • images - folder contains plugin management site images
    • program - folder contains plugin data
      • class - php class files to be delegated available to site by class autoload. Any other site program may use delegated classes
      • images - images to be used in delegated to site jQuery plugin and stylesheet
      • plugin - delegated to site template plugins (will be available in any site template)
      • template - delegated to site template (will be available in any site template as include templates)
      • plugin jQuery file (cms-plugin-pluginid.js) - delegated to site plugin main Java Script file and to be available in any site Java Script file
      • plugin CSS file (cms-plugin-pluginid.css) - delegated to site CSS file required for plugin jQuery file
    • skins - folder contains plugin management site skins
    • other plugin subsite files:
      • config (conf_local.xml) - subsite configuration xml file
      • pages (pages.xml) - subsite pages xml file
      • languages (lang.xml) - subsite languages xml file
      • menu (menu.xml) - subsite menu tree xml file
      • plugin metadata file (plugin.xml)
  • other plugin subsite inportant files
    • .htaccess - handle HTTP requests
    • index.php - call CMS software
    • favicon.ico - small image representing subsite

Plugin must have folowing metadata (file plugin.xml):

• attributes: id (mandatory), version (optional), date (optional)
• author (optional)
• description (optional)
• keywords (optional)
• relative path to plugin software folder (optional) - default is "/cms/srv/plugins/pluginid"
• relative path to plugin data folder (optional) - default is "/cms/data/plugins/pluginid"
• path to CMS plugin css file delegated to be included into page (optional)
• path to CMS plugin jQuery js file delegated to be included into page
• path to CMS plugin template folder delegated to be included into page (optional)
• path to CMS plugin template plugin folder delegated to be included into page (optional)

CMS plugins are defined in "/cms/srv/plugins/plugins.xml" file by default. Site may have it's own plugins.xml file defined in CMS tools Setup. Plugin metadata defined in site plugins.xml file may define new CMS plugins or replace/alter default CMS plugins.
